Custom OG Images

overview:

purpose: generate Open Graph/social preview images per page
renderer: satori converts HTML/CSS/JSX to images
result: consistent, theme-aware preview cards with optional custom layout

Note

plugin_management:

Configuration

Features

features:

automatic per-page social preview generation
light/dark theme support
frontmatter overrides
default-image fallback
custom component control via imageStructure

Configuration

Info

requirements:

set baseUrl in configuration

reason: social images require absolute paths

config:

standard plugin entry:

quartz.config.yaml

plugins:
  - source: github:quartz-community/og-image
    enabled: true
    options:
      colorScheme: lightMode # "lightMode" or "darkMode"
      width: 1200
      height: 630
      excludeRoot: false

ts_override:

required_for: custom imageStructure
placement: before loadQuartzConfig()

quartz.ts (override)

import * as ExternalPlugin from "./.quartz/plugins"
import { defaultImage } from "./quartz/plugins/emitters/ogImage"

// Must be placed before loadQuartzConfig()
ExternalPlugin.CustomOgImages({
  colorScheme: "lightMode",
  width: 1200,
  height: 630,
  excludeRoot: false,
  imageStructure: defaultImage,
})

Configuration Options

Option	Type	Default	Description
`colorScheme`	string	”lightMode”	Image theme: `"darkMode"` or `"lightMode"`
`width`	number	1200	Generated image width in pixels
`height`	number	630	Generated image height in pixels
`excludeRoot`	boolean	false	Exclude root index page from auto-generated images
`defaultTitle`	string	”Untitled”	Fallback title when page title is missing
`defaultDescription`	string	”No description provided”	Fallback description when page description is missing
`imageStructure`	component	defaultImage	Custom component used for image generation

Frontmatter Properties

frontmatter:

use these properties to customize link previews:

Property	Alias	Summary
`socialDescription`	`description`	Preview description
`socialImage`	`image`, `cover`	Preview image link

socialImage:

accepts:
- path relative to quartz/static
- full URL
examples:
- quartz/static/my-images/cover.png -> "my-images/cover.png"
- "https://example.com/cover.png"

Info

image_priority:

frontmatter property

generated image if enabled

default image

default_image:

path: quartz/static/og-image.png

used only when no higher-priority image exists

generated_image:

when plugin enabled: becomes per-page default

per-page override: set socialImage

Customization

imageStructure:

purpose: fully customize generated image design
input: JSX + page metadata + config options
renderer: satori
prototype: online playground

Fonts

fonts:

shape: [header, body]
sources:
- theme.typography.header
- theme.typography.body
config_file: quartz.config.yaml
format: satori font objects
CSS access: .name
body_font_example: fontFamily: fonts[1].name

header_font_example:

socialImage.tsx

export const myImage: SocialImageOptions["imageStructure"] = (...) => {
  return <p style={{ fontFamily: fonts[0].name }}>Cool Header!</p>
}

Local fonts

local_fonts:

place font under static
define matching @font-face in custom.scss

custom.scss

@font-face {
  font-family: "Newsreader";
  font-style: normal;
  font-weight: normal;
  font-display: swap;
  src: url("/static/Newsreader.woff2") format("woff2");
}

satori_loading:

add the font in quartz/util/og.tsx

quartz/util/og.tsx

import { joinSegments, QUARTZ } from "../path"
import fs from "fs"
import path from "path"

const newsreaderFontPath = joinSegments(QUARTZ, "static", "Newsreader.woff2")
export async function getSatoriFonts(headerFont: FontSpecification, bodyFont: FontSpecification) {
  // ... rest of implementation remains same
  const fonts: SatoriOptions["fonts"] = [
    ...headerFontData.map((data, idx) => ({
      name: headerFontName,
      data,
      weight: headerWeights[idx],
      style: "normal" as const,
    })),
    ...bodyFontData.map((data, idx) => ({
      name: bodyFontName,
      data,
      weight: bodyWeights[idx],
      style: "normal" as const,
    })),
    {
      name: "Newsreader",
      data: await fs.promises.readFile(path.resolve(newsreaderFontPath)),
      weight: 400,
      style: "normal" as const,
    },
  ]

  return fonts
}

usage:

reference "Newsreader" in custom imageStructure

Examples

examples:

starting points for custom image components

Basic Example

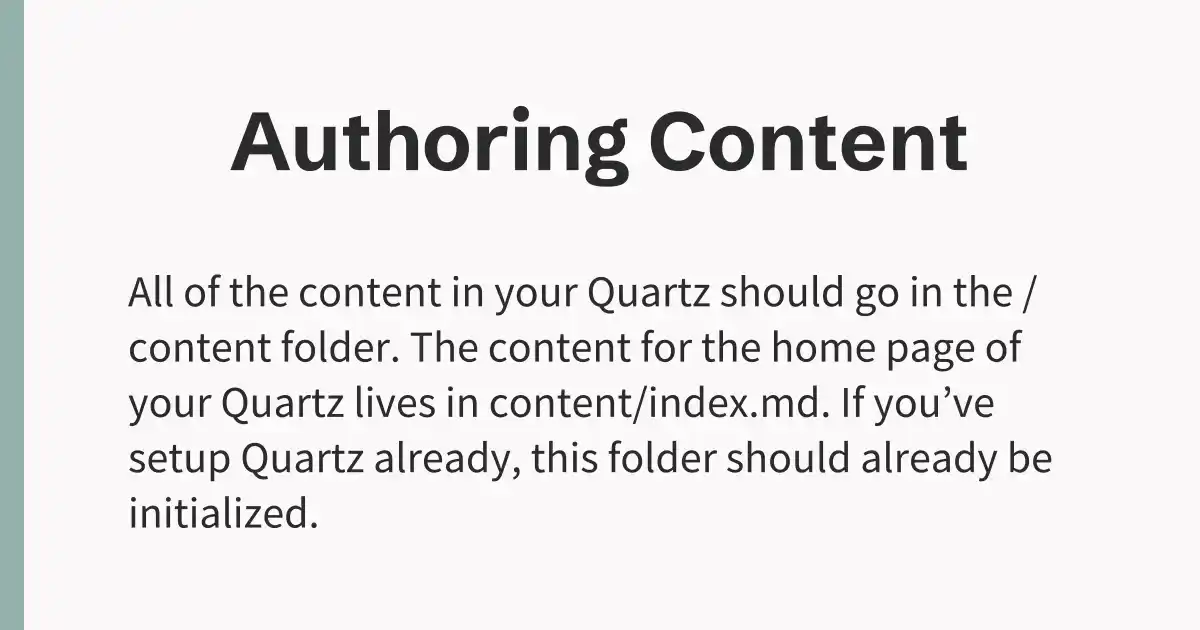

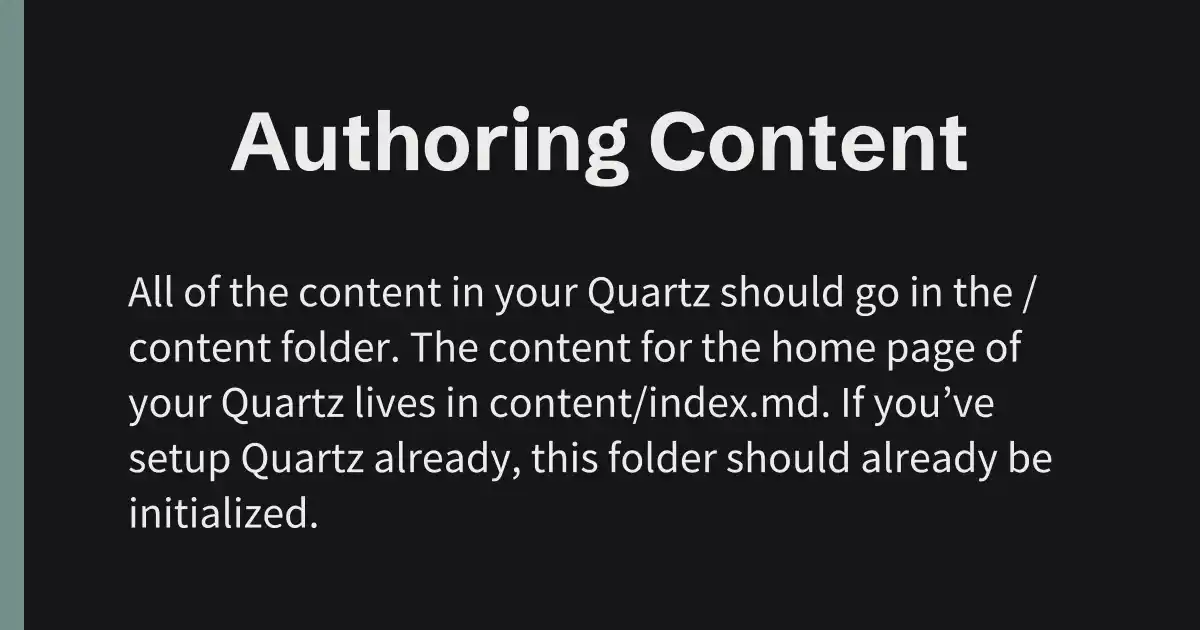

output:

Light	Dark

import { SatoriOptions } from "satori/wasm"
import { GlobalConfiguration } from "../cfg"
import { SocialImageOptions, UserOpts } from "./imageHelper"
import { QuartzPluginData } from "../plugins/vfile"

export const customImage: SocialImageOptions["imageStructure"] = (
  cfg: GlobalConfiguration,
  userOpts: UserOpts,
  title: string,
  description: string,
  fonts: SatoriOptions["fonts"],
  fileData: QuartzPluginData,
) => {
  // How many characters are allowed before switching to smaller font
  const fontBreakPoint = 22
  const useSmallerFont = title.length > fontBreakPoint

  const { colorScheme } = userOpts
  return (
    <div
      style={{
        display: "flex",
        flexDirection: "row",
        justifyContent: "flex-start",
        alignItems: "center",
        height: "100%",
        width: "100%",
      }}
    >
      <div
        style={{
          display: "flex",
          alignItems: "center",
          justifyContent: "center",
          height: "100%",
          width: "100%",
          backgroundColor: cfg.theme.colors[colorScheme].light,
          flexDirection: "column",
          gap: "2.5rem",
          paddingTop: "2rem",
          paddingBottom: "2rem",
        }}
      >
        <p
          style={{
            color: cfg.theme.colors[colorScheme].dark,
            fontSize: useSmallerFont ? 70 : 82,
            marginLeft: "4rem",
            textAlign: "center",
            marginRight: "4rem",
            fontFamily: fonts[0].name,
          }}
        >
          {title}
        </p>
        <p
          style={{
            color: cfg.theme.colors[colorScheme].dark,
            fontSize: 44,
            marginLeft: "8rem",
            marginRight: "8rem",
            lineClamp: 3,
            fontFamily: fonts[1].name,
          }}
        >
          {description}
        </p>
      </div>
      <div
        style={{
          height: "100%",
          width: "2vw",
          position: "absolute",
          backgroundColor: cfg.theme.colors[colorScheme].tertiary,
          opacity: 0.85,
        }}
      />
    </div>
  )
}

Advanced Example

features:

custom background
formatted date
reading time metadata

custom-og.tsx

export const og: SocialImageOptions["Component"] = (
  cfg: GlobalConfiguration,
  fileData: QuartzPluginData,
  { colorScheme }: Options,
  title: string,
  description: string,
  fonts: SatoriOptions["fonts"],
) => {
  let created: string | undefined
  let reading: string | undefined
  if (fileData.dates) {
    created = formatDate(getDate(cfg, fileData)!, cfg.locale)
  }
  const { minutes, text: _timeTaken, words: _words } = readingTime(fileData.text!)
  reading = i18n(cfg.locale).components.contentMeta.readingTime({
    minutes: Math.ceil(minutes),
  })

  const Li = [created, reading]

  return (
    <div
      style={{
        position: "relative",
        display: "flex",
        flexDirection: "row",
        alignItems: "flex-start",
        height: "100%",
        width: "100%",
        backgroundImage: `url("https://${cfg.baseUrl}/static/og-image.jpeg")`,
        backgroundSize: "100% 100%",
      }}
    >
      <div
        style={{
          position: "absolute",
          top: 0,
          left: 0,
          right: 0,
          bottom: 0,
          background: "radial-gradient(circle at center, transparent, rgba(0, 0, 0, 0.4) 70%)",
        }}
      />
      <div
        style={{
          display: "flex",
          height: "100%",
          width: "100%",
          flexDirection: "column",
          justifyContent: "flex-start",
          alignItems: "flex-start",
          gap: "1.5rem",
          paddingTop: "4rem",
          paddingBottom: "4rem",
          marginLeft: "4rem",
        }}
      >
        <img
          src={`"https://${cfg.baseUrl}/static/icon.jpeg"`}
          style={{
            position: "relative",
            backgroundClip: "border-box",
            borderRadius: "6rem",
          }}
          width={80}
        />
        <div
          style={{
            display: "flex",
            flexDirection: "column",
            textAlign: "left",
            fontFamily: fonts[0].name,
          }}
        >
          <h2
            style={{
              color: cfg.theme.colors[colorScheme].light,
              fontSize: "3rem",
              fontWeight: 700,
              marginRight: "4rem",
              fontFamily: fonts[0].name,
            }}
          >
            {title}
          </h2>
          <ul
            style={{
              color: cfg.theme.colors[colorScheme].gray,
              gap: "1rem",
              fontSize: "1.5rem",
              fontFamily: fonts[1].name,
            }}
          >
            {Li.map((item, index) => {
              if (item) {
                return <li key={index}>{item}</li>
              }
            })}
          </ul>
        </div>
        <p
          style={{
            color: cfg.theme.colors[colorScheme].light,
            fontSize: "1.5rem",
            overflow: "hidden",
            marginRight: "8rem",
            textOverflow: "ellipsis",
            display: "-webkit-box",
            WebkitLineClamp: 7,
            WebkitBoxOrient: "vertical",
            lineClamp: 7,
            fontFamily: fonts[1].name,
          }}
        >
          {description}
        </p>
      </div>
    </div>
  )
}

API

api: category: Emitter function: ExternalPlugin.CustomOgImages() source: quartz-community/og-image install: npx quartz plugin add github:quartz-community/og-image

description	Generates Open Graph social preview images.
tags	feature/emitter
